THIN SECTION BEARING
Thin-section bearings are high-precision products with very little running noise and a high load-carrying capacity. These bearings are available in three different designs with extremely small, predominantly square cross-sections. Within each series, the cross-section remains constant even in the case of larger shaft and housing bore diameters.
In this way, a larger cross-section can be selected in a graduated manner and, thus, a bearing with high load-carrying capacity can be used without the need to increase the shaft diameter. Thin-section bearings can be used to achieve extremely light and compact designs.
Thin-section bearings are available as deep groove ball bearings, four-point contact bearings and as angular contact ball bearings. Each of these designs is available in various series. The series correspond to the cross-section sizes. The balls are matched to the series.

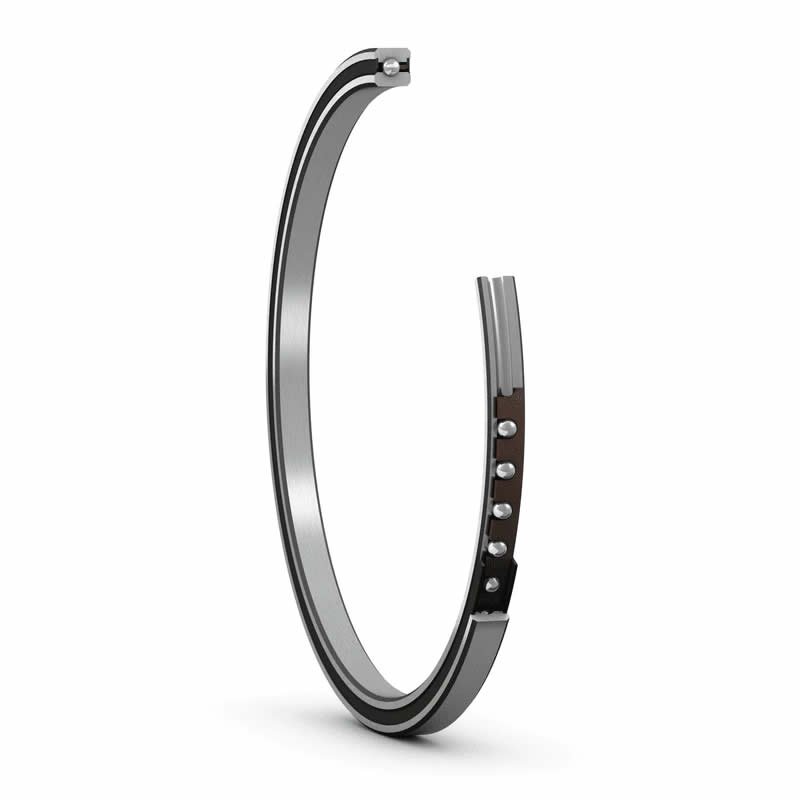

Thin Section Deep Groove Ball Bearing
Radial contact ball bearings with seals or shields are designed to accommodate radial loads and some axial loads in either direction.
View more >

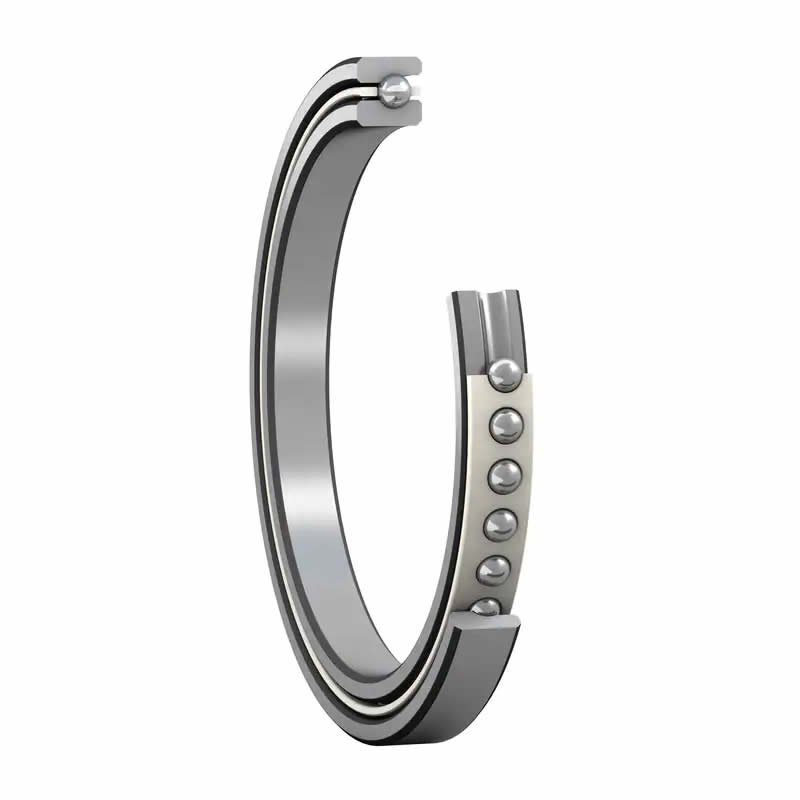

Thin Section Angular Contact Ball Bearing
These angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in only one direction.
View more >

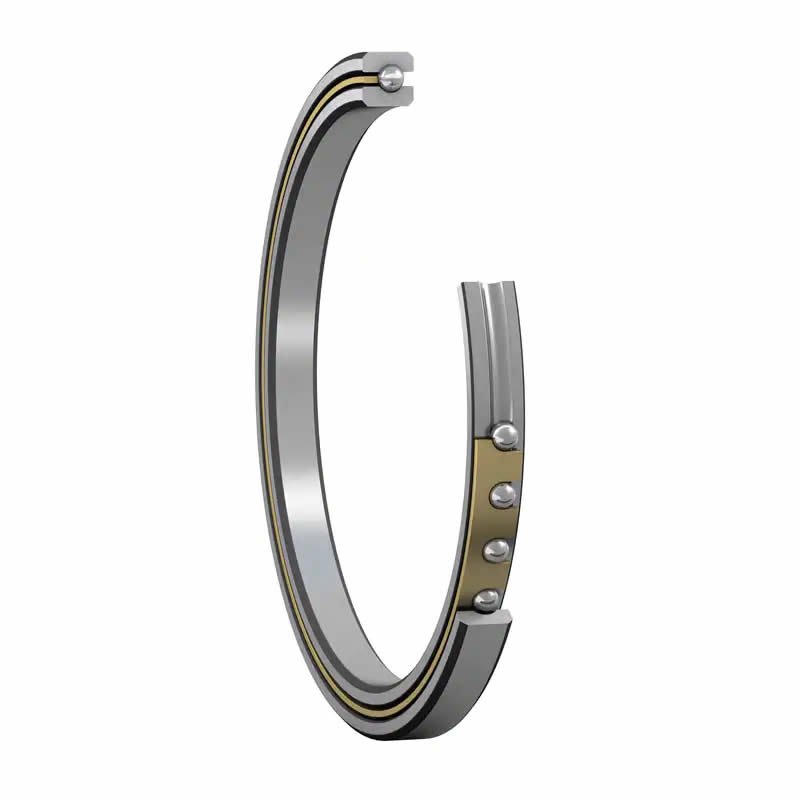

Thin Section Four Point Contact Ball Bearing
Thin four-point contact ball bearing can accommodate radial, axial and moment loads simultaneously. the bearing are available with metric or inch dimensions.
View more >
Thin Section Bearing
Section bearing series is based on a single cross section which remains constant as the bore diameter increases, leading to significant space and weight savings.
View more >
THIN SECTION BEARING APPLICATION
Smaller and lighter – this is a requirement in many modern designs. This requirement is met by thin-section bearings.
Aerospace & Defense
Commercial Aerospace

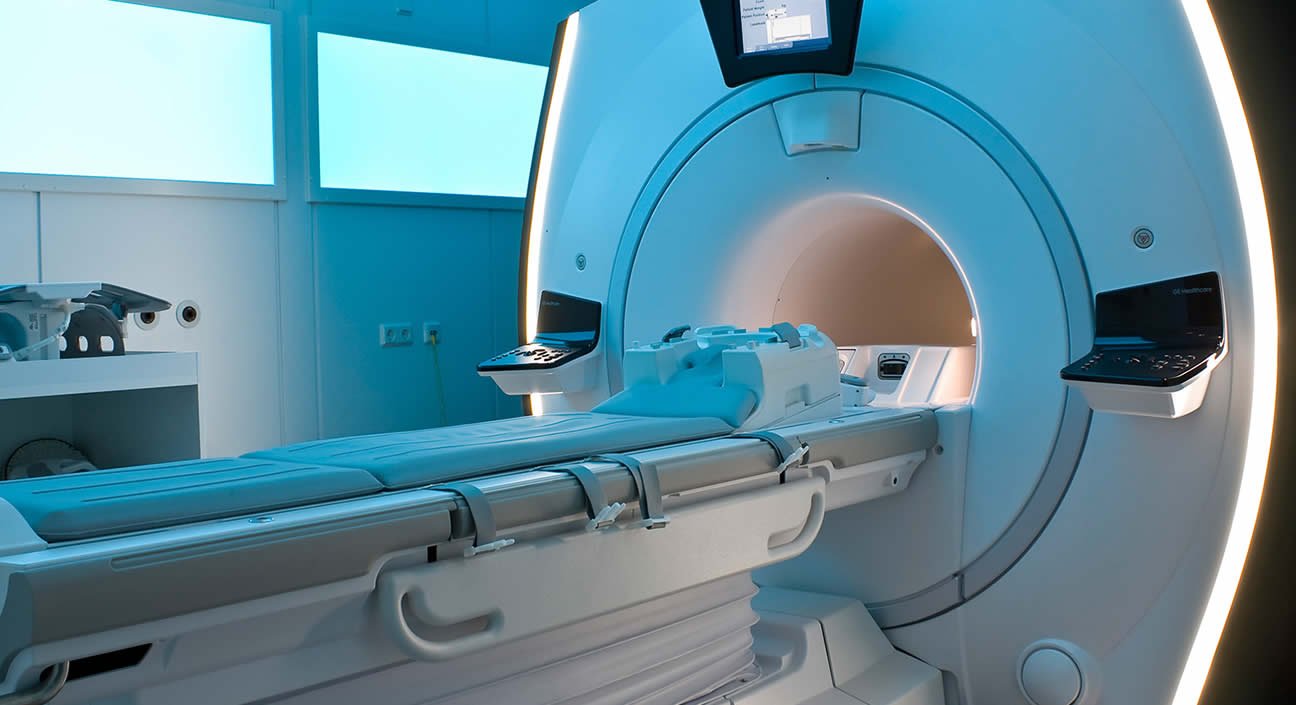

Medical Systems
Robotics
Semiconductor
Wind Turbines
Solar Panels
Industrial Machinery
Oil & Gas
